CH500 Electric 12v DC Powered Hoist with 500 lbs. Capacity
4.0 (149 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211772519 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211772519 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

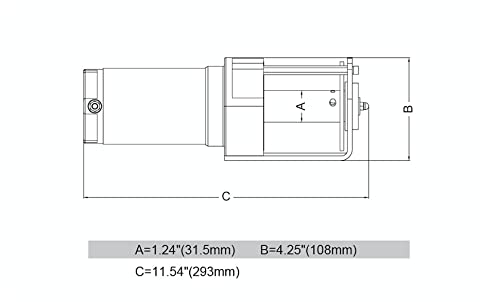

Built with a 4:1 safety rating for lifting, the CH500 is the right winch to safely lift and move materials up to 500lbs. This hoist features full power in and power out and a full-load mechanical brake to ensure secure and easy operation. Rated Line Pull 500lbs(226kgs) single line Motor(Series wound): DC 12V: 0.53hp/0.4kW Gear Box 1-Stage Planetary Gear Ratio 153:1 Braking Action Differential Self-Locking Fairlead 4-Way Roller Wire Rope 3/16″×15.7′ (4.8mm×4.8m) Performance Line Pull lbs (kgs) No Load 500 (226) Line Speed FPM(MPM) 11.2 (3.4) 8.2 (2.5) Motor Current Amp 18 32 Dimensions 11.81″×3.93″×2.25″(300mm×100mm×108mm) Mounting Bolt Pattern 2-hole 3.12" (79.5mm) Weight 18.7lbs (18.5kgs)
- 500 lbs lifting/pulling capacity
- 4.3' remote switch for power up/power down. Battery lead is 5.9'
- Can be mounted vertically or horizontally
- 15' of quality aircraft-grade wire cable
| Item Weight | 20 pounds |
|---|---|
| Manufacturer | Novawinch |
| Package Dimensions | 14.5 x 8.7 x 7.7 inches |
